A STUDY OF RESOLUTION-AWARE VIDEO COMPRESSION FOR REMOTE PHOTOPLETHYSMOGRAPHY

HiDURPA Dataset

HIDURPA (High Defi-
nition Uncompressed Remote Photoplethysmography
Acquisition) is a high-definition raw video dataset designed for research in remote photoplethysmography (rPPG). The dataset includes recordings from 12 participants (4 female, 8 male), with five 30-second sessions per participant.

Recording setup

Participants were positioned approximately 1 meter in front of the camera and were instructed to stand still during acquisition. Video was captured using a Blackmagic Pocket Cinema Camera 4K and illuminated with two softboxes to ensure consistent lighting. The recordings were acquired via a Blackmagic DeckLink Mini Recorder 4K capture card in uncompressed YUV422 at 30 fps.

Ground truth measurements

To provide reliable reference signals for validation, the following ground truth data were recorded:

• ECG using a Polar H10

• BVP and SpO₂ waveforms using a VTM20F

Availability & access

The dataset will be released upon publication of the paper:

“A STUDY OF RESOLUTION-AWARE VIDEO COMPRESSION FOR REMOTE PHOTOPLETHYSMOGRAPHY”

Access is restricted to research groups and research institutions and requires a signed Data Usage Agreement (DUA).

Supplementary information

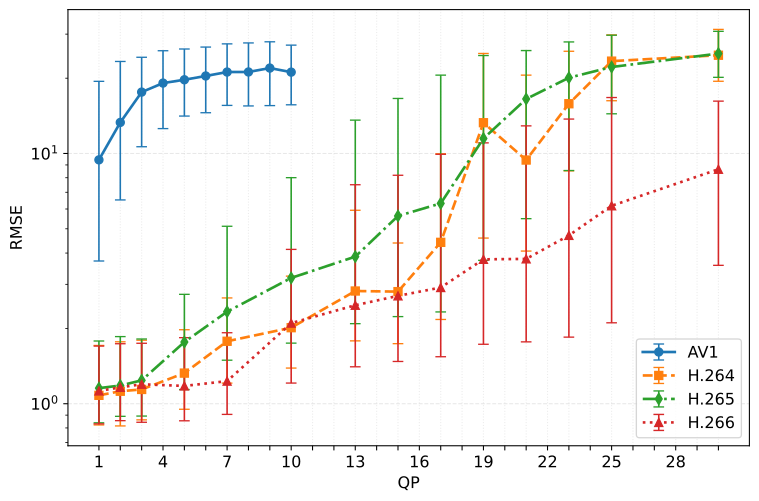

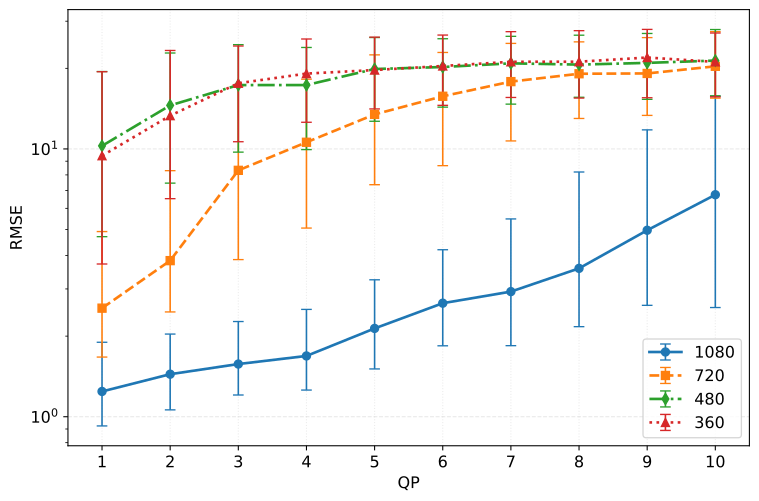

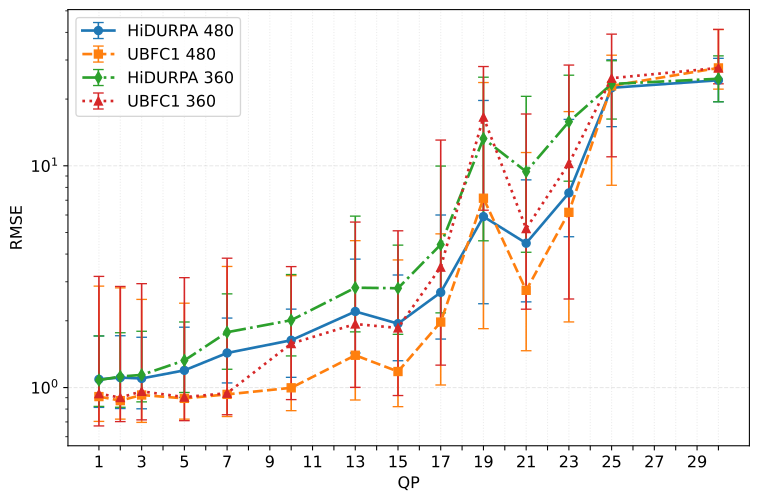

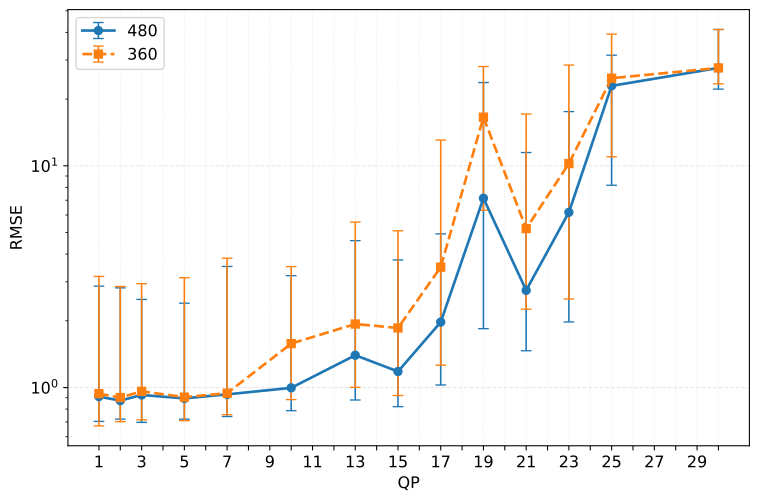

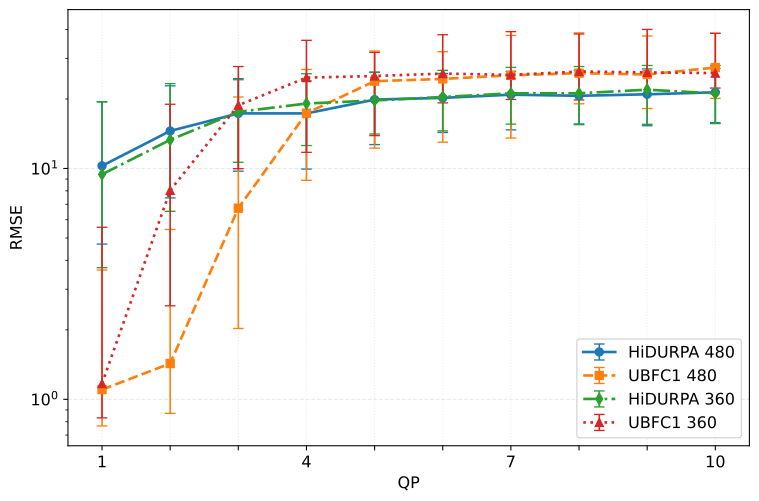

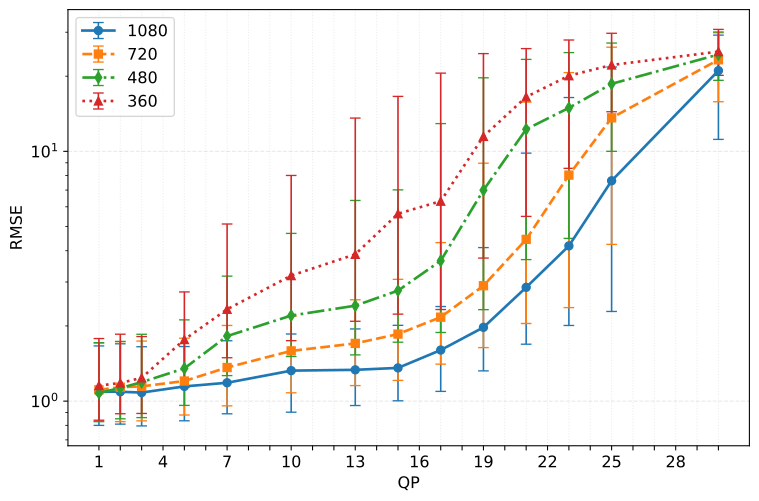

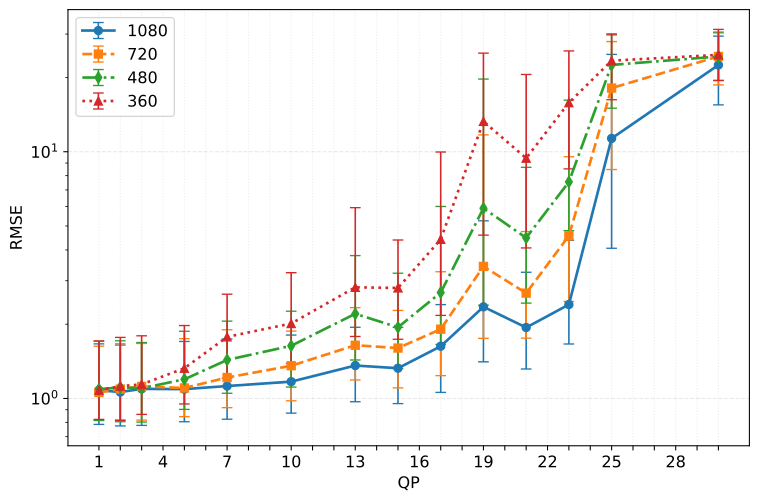

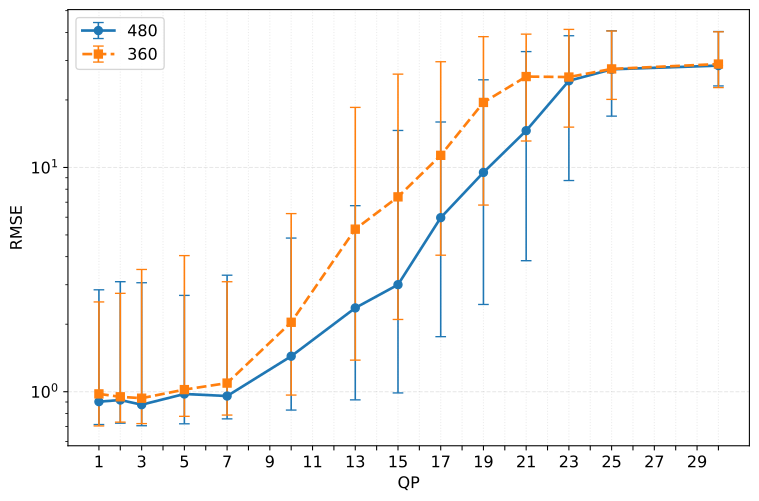

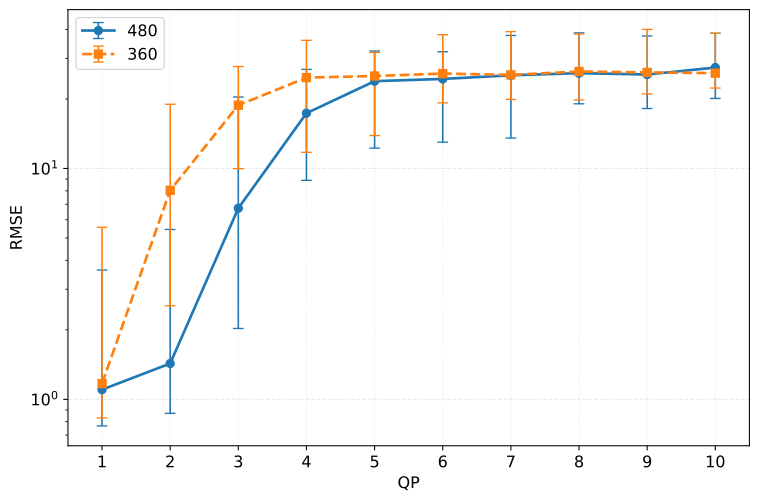

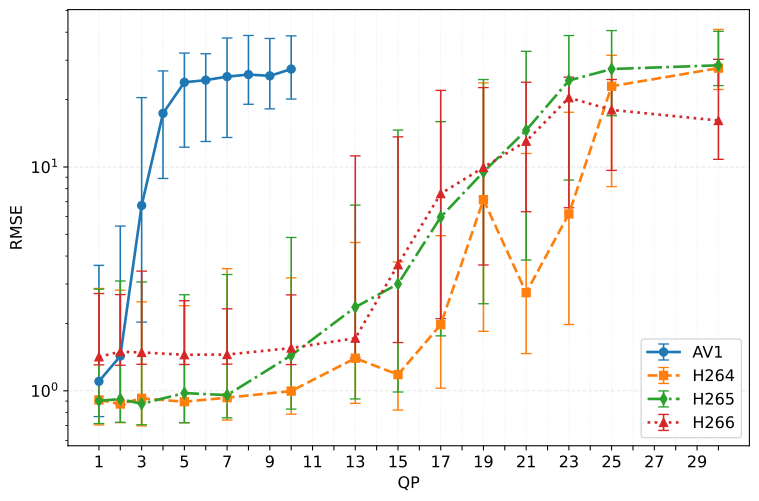

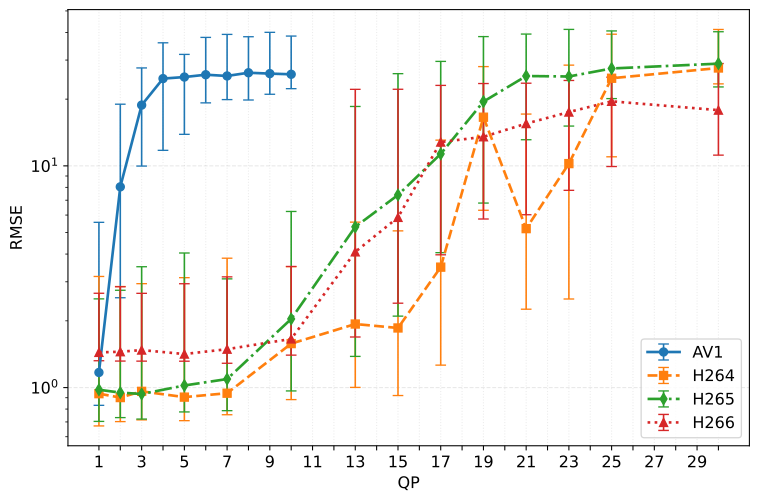

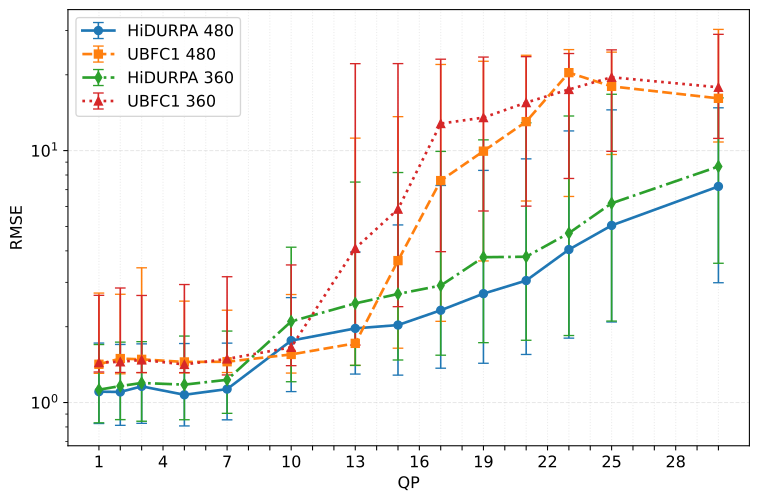

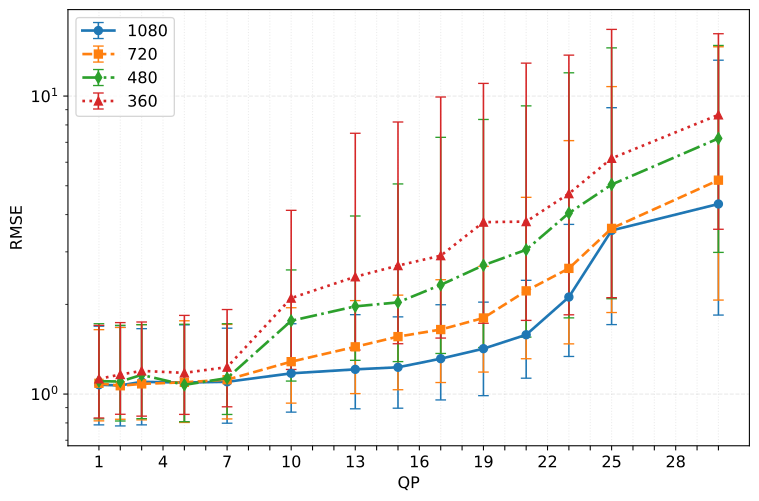

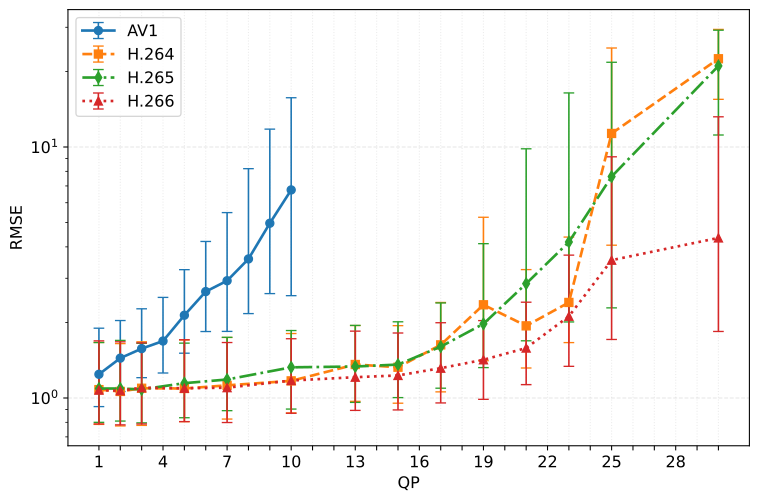

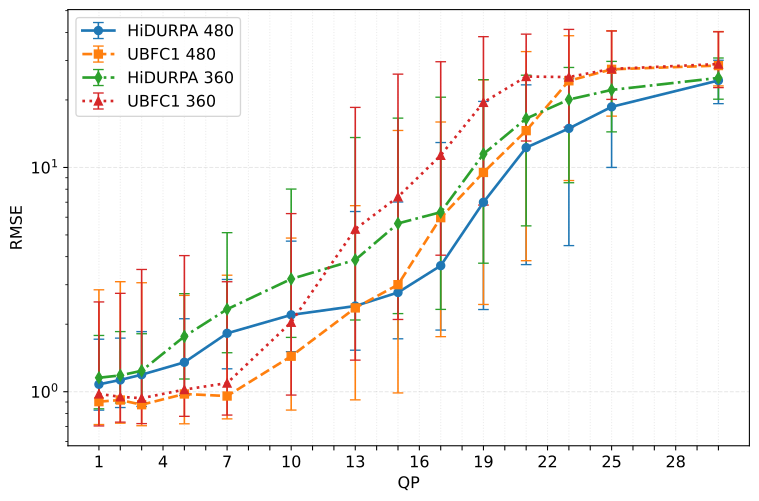

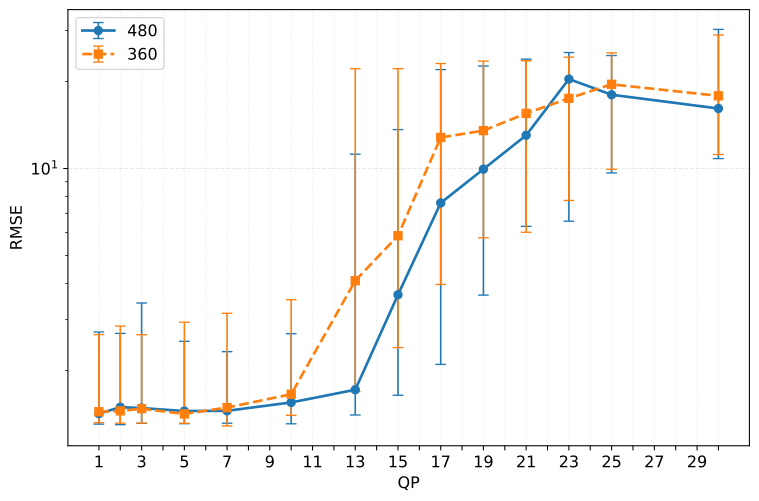

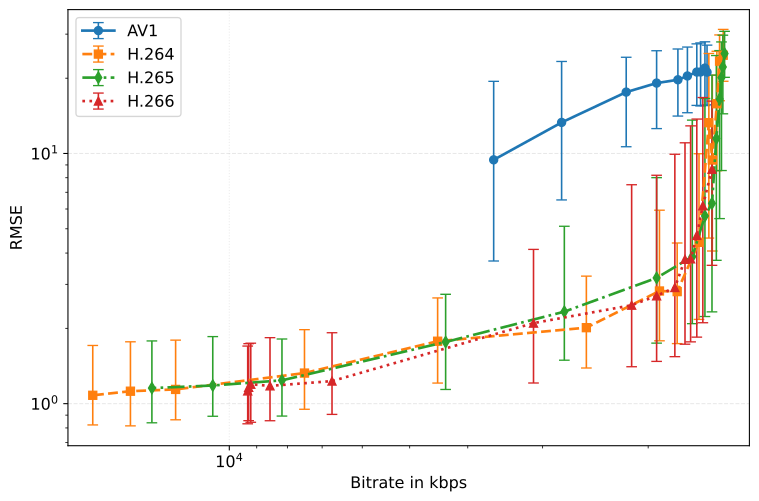

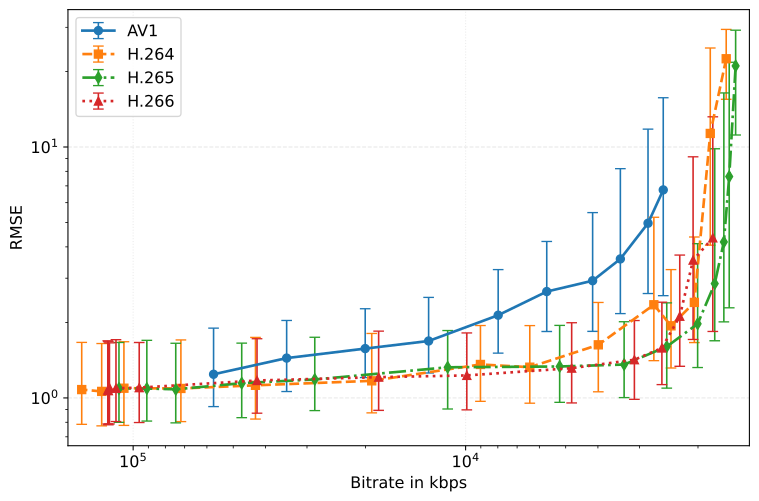

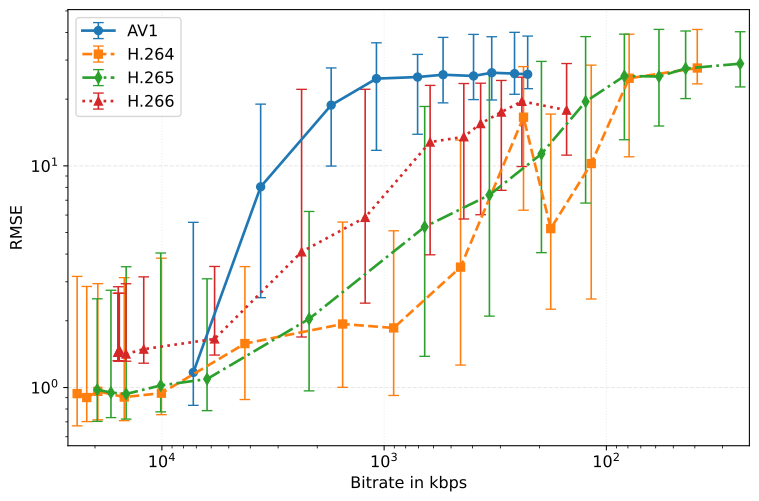

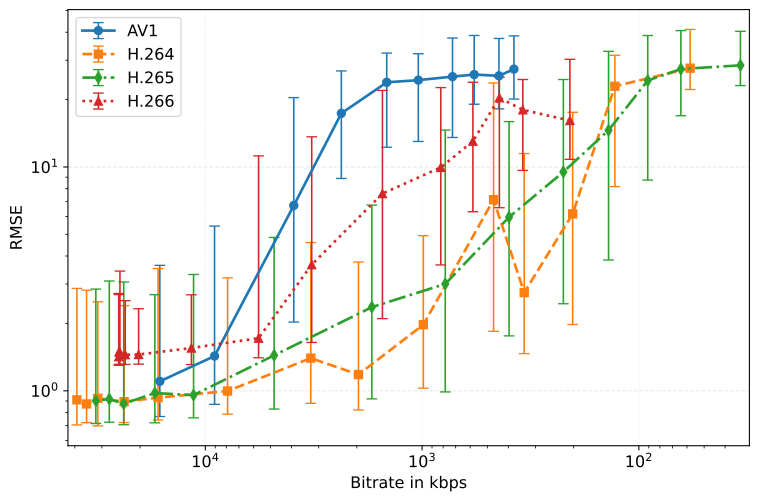

This section provides supplementary material to complement the paper, presenting the complete tabulated results and accompanying figures from our experiments on resolution- and compression-aware remote photoplethysmography (rPPG). The tables report rPPG performance (mean ± standard deviation) across different video codecs (H.264/AVC, H.265/HEVC, H.266/VVC, and AV1), quantization parameter (QP) settings, and spatial resolutions on the HiDURPA and UBFC1 datasets. The figures summarize rPPG performance (median ± interquartile range) across codecs, QP levels, spatial resolutions, and datasets.

TABLES – rPPG Performance (mean RMSE ± standard deviation) and video file sizes for multiple QPs and video codecs on HiDURPA and UBFC1 datasets:

HiDURPA dataset H.264

QP	H.264 1080p		H.264 720p		H.264 480p		H.264 360p
QP	RMSE	size	RMSE	size	RMSE	size	RMSE	size
1	1.31 ± 0.81	535.47	1.34 ± 0.86	251.87	1.39 ± 1.02	113.33	1.36 ± 0.91	63.37
2	1.31 ± 0.84	466.27	1.34 ± 0.86	219.96	1.38 ± 0.97	98.46	1.40 ± 0.95	54.83
3	1.34 ± 0.89	399.73	1.38 ± 0.90	188.33	1.35 ± 0.93	83.41	1.44 ± 0.94	46.09
5	1.35 ± 0.89	269.4	1.35 ± 0.79	122.75	1.49 ± 0.92	51.33	1.78 ± 2.19	28.09
7	1.39 ± 0.89	160.72	1.47 ± 0.83	69.41	2.21 ± 4.76	29.13	2.83 ± 5.00	16.84
10	1.41 ± 0.78	71.84	1.64 ± 1.18	30.14	2.28 ± 3.36	14.08	3.45 ± 5.03	9.51
13	1.66 ± 1.27	33.84	2.58 ± 4.71	15.29	4.07 ± 6.65	8.9	6.70 ± 10.74	7.18
15	1.85 ± 2.17	24.04	2.10 ± 2.26	12.01	3.45 ± 6.43	7.85	4.78 ± 6.99	6.71
17	2.35 ± 3.12	14.96	3.88 ± 6.90	8.63	6.21 ± 9.81	6.68	9.39 ± 12.17	6.17
19	6.32 ± 10.23	10.18	9.28 ± 12.55	7.19	12.95 ± 14.31	6.22	16.74 ± 14.08	5.94
21	3.05 ± 5.03	9.04	5.07 ± 8.36	6.85	9.03 ± 11.79	6.09	13.85 ± 12.87	5.86
23	5.19 ± 9.17	7.69	8.73 ± 11.37	6.4	12.82 ± 13.13	5.92	18.39 ± 13.09	5.76
25	15.51 ± 14.08	6.89	19.52 ± 13.47	6.11	23.24 ± 12.05	5.8	24.51 ± 11.15	5.7
30	23.67 ± 11.79	6.17	25.56 ± 10.67	5.83	25.95 ± 10.28	5.68	26.37 ± 10.28	5.62

HiDURPA dataset: Mean (± standard deviation) RMSE and mean video file size in MB across QP levels for H.264 at 1080p. 720p. 480p. and 360p.

HiDURPA dataset H.265

QP	H.265 1080p		H.265 720p		H.265 480p		H.265 360p
QP	RMSE	size	RMSE	size	RMSE	size	RMSE	size
1	1.33 ± 0.92	413.69	1.39 ± 0.95	198.31	1.33 ± 0.79	90.18	1.46 ± 1.00	50.49
2	1.34 ± 0.85	341.08	1.37 ± 0.85	163.12	1.39 ± 0.95	72.79	1.48 ± 0.96	39.96
3	1.34 ± 0.89	279.19	1.41 ± 0.99	132.43	1.47 ± 0.96	57.36	1.55 ± 1.11	30.63
5	1.37 ± 0.90	176.79	1.51 ± 1.10	78.03	1.80 ± 1.36	30.58	2.60 ± 3.86	16.33
7	1.51 ± 1.12	106.59	2.02 ± 2.95	43.18	3.68 ± 7.24	17.17	5.46 ± 9.36	10.35
10	1.59 ± 1.12	42.46	2.97 ± 6.87	17.31	5.65 ± 10.48	9.3	7.95 ± 11.20	7.26
13	1.89 ± 3.07	19.55	3.66 ± 8.17	9.79	7.37 ± 11.96	7.06	10.59 ± 13.58	6.33
15	2.10 ± 4.12	12.51	4.20 ± 9.24	7.7	7.36 ± 10.75	6.41	11.52 ± 13.09	6.03
17	3.27 ± 7.31	9.31	6.02 ± 10.85	6.77	9.41 ± 12.51	6.09	13.24 ± 14.38	5.87
19	5.43 ± 10.23	7.52	8.07 ± 12.37	6.28	13.04 ± 14.14	5.91	15.62 ± 14.14	5.77
21	8.94 ± 13.11	6.68	11.03 ± 13.47	6.02	15.15 ± 14.04	5.79	17.96 ± 14.17	5.7
23	11.25 ± 13.83	6.27	13.87 ± 14.35	5.87	17.11 ± 14.06	5.72	20.68 ± 13.42	5.66
25	13.86 ± 14.24	6.04	16.83 ± 14.29	5.78	19.81 ± 13.43	5.68	23.01 ± 12.44	5.63
30	21.72 ± 13.09	5.78	23.96 ± 11.57	5.67	25.81 ± 10.92	5.62	26.53 ± 10.57	5.59

HiDURPA dataset: Mean (± standard deviation) RMSE and mean video file size in MB across QP levels for H.265 at 1080p, 720p, 480p, and 360p.

HiDURPA dataset H.266

QP	H.266 1080p		H.266 720p		H.266 480p		H.266 360p
QP	RMSE	size	RMSE	size	RMSE	size	RMSE	size
1	1.35 ± 0.92	447.01	1.35 ± 0.90	165.44	1.35 ± 0.84	68.79	1.39 ± 0.98	34.94
2	1.34 ± 0.89	445.21	1.34 ± 0.91	164.65	1.33 ± 0.84	68.51	1.39 ± 0.88	34.81
3	1.33 ± 0.85	441.89	1.36 ± 0.91	163.1	1.36 ± 0.83	67.91	1.82 ± 2.87	34.53
5	1.36 ± 0.91	422.34	1.39 ± 0.96	154.86	1.33 ± 0.78	64.06	1.49 ± 1.05	32.07
7	1.37 ± 0.96	359.56	1.38 ± 0.91	131.68	1.43 ± 0.96	52.8	1.65 ± 1.22	25.27
10	1.40 ± 0.89	159.01	1.60 ± 1.11	60.1	3.03 ± 5.82	22.96	5.04 ± 9.36	11.65
13	1.50 ± 1.06	68.49	1.98 ± 2.90	24.33	4.73 ± 8.58	11.17	6.97 ± 10.59	7.99
15	1.55 ± 1.28	37.19	2.06 ± 2.56	14.03	5.32 ± 8.87	8.71	7.23 ± 10.38	7.26
17	1.70 ± 1.29	17.99	2.79 ± 4.98	9.53	5.83 ± 8.71	7.52	8.11 ± 11.02	6.77
19	1.89 ± 2.27	11.65	3.27 ± 5.75	8.23	7.12 ± 10.59	7.05	8.86 ± 11.23	6.51
21	2.85 ± 5.42	9.63	4.97 ± 8.57	7.75	8.17 ± 11.31	6.82	9.26 ± 11.58	6.37
23	4.44 ± 7.41	8.51	6.60 ± 9.86	7.28	8.75 ± 10.84	6.57	10.25 ± 12.24	6.22
25	7.63 ± 10.28	7.76	8.42 ± 10.84	6.91	10.42 ± 12.15	6.36	11.74 ± 13.07	6.08
30	9.75 ± 11.68	6.77	10.36 ± 11.97	6.32	11.69 ± 12.76	6.02	12.59 ± 12.13	5.87

HiDURPA dataset: Mean (± standard deviation) RMSE and mean video file size in MB across QP levels for H.266 at 1080p, 720p, 480p, and 360p.

HiDURPA dataset AV1

QP	AV1 1080p		AV1 720p		AV1 480p		AV1 360p
QP	RMSE	size	RMSE	size	RMSE	size	RMSE	size
1	1.65 ± 1.62	214.85	5.02 ± 7.72	51.09	13.80 ± 12.55	23.74	13.55 ± 12.86	13.58
2	1.85 ± 2.87	129.51	8.72 ± 11.79	34.34	17.24 ± 12.78	15.41	16.77 ± 13.18	10.46
3	2.32 ± 4.02	75.17	12.79 ± 12.80	20.22	18.99 ± 12.50	10.41	19.50 ± 12.11	8.16
4	2.79 ± 5.90	48.45	14.16 ± 12.86	14.01	19.13 ± 12.14	8.61	20.83 ± 11.75	7.26
5	4.10 ± 7.70	29.93	17.25 ± 13.04	10.65	21.16 ± 11.79	7.56	21.61 ± 11.52	6.69
6	5.01 ± 8.72	21.38	18.03 ± 12.65	9.3	21.80 ± 11.72	7.1	22.24 ± 11.42	6.45
7	6.20 ± 10.07	15.56	19.77 ± 12.20	8.18	22.26 ± 11.42	6.68	22.73 ± 11.00	6.22
8	7.77 ± 11.17	12.84	20.76 ± 11.52	7.69	22.21 ± 11.40	6.5	22.84 ± 10.98	6.13
9	10.02 ± 12.16	10.6	21.34 ± 11.62	7.2	22.80 ± 11.32	6.32	23.10 ± 11.22	6.03
10	11.58 ± 12.56	9.54	22.71 ± 11.32	6.99	23.05 ± 11.09	6.24	23.12 ± 11.18	5.98

HiDURPA dataset: Mean (± standard deviation) RMSE and mean video file size in MB across QP levels for AV1 at 1080p. 720p. 480p. and 360p.

UBFC1 dataset H.264

QP	H.264 480p		H.264 360p
QP	RMSE	size	RMSE	size
1	3.65 ± 6.70	395.28	3.49 ± 6.41	243.09
2	4.04 ± 8.03	356.77	3.25 ± 5.53	220.05
3	3.52 ± 6.57	316.54	3.86 ± 7.90	196.21
5	3.92 ± 7.83	239.44	3.96 ± 7.61	149.24
7	3.74 ± 6.47	166.96	3.66 ± 6.08	101.54
10	4.27 ± 7.91	79.79	4.39 ± 7.65	42.75
13	5.13 ± 8.35	32.95	6.30 ± 9.93	15.53
15	4.31 ± 7.70	19.87	5.24 ± 8.13	9.15
17	6.14 ± 9.10	9.97	8.69 ± 11.12	4.58
19	13.07 ± 13.09	4.73	19.59 ± 15.67	2.38
21	8.56 ± 11.34	3.42	11.45 ± 12.77	1.8
23	11.53 ± 12.52	2.04	15.62 ± 14.38	1.18
25	22.37 ± 15.26	1.3	25.92 ± 16.02	0.8
30	31.24 ± 13.34	0.59	32.04 ± 13.22	0.39

UBFC1 dataset: Mean (± standard deviation) RMSE and mean video file size in MB across QP levels for H.264 at 480p and 360p.

UBFC1 dataset H.265

QP	H.265 480p		H.265 360p
QP	RMSE	size	RMSE	size
1	3.75 ± 7.70	323.32	3.97 ± 7.87	197.44
2	3.61 ± 6.56	280.29	3.95 ± 7.31	171.24
3	3.93 ± 7.64	240.49	3.68 ± 6.56	146.34
5	3.82 ± 6.84	172.73	4.37 ± 7.84	102.24
7	4.19 ± 7.73	114.52	4.25 ± 7.64	63.28
10	5.17 ± 8.55	48.66	6.43 ± 9.07	21.99
13	7.66 ± 11.20	17.24	11.20 ± 13.08	6.64
15	9.49 ± 12.55	7.9	15.11 ± 15.08	3.4
17	10.54 ± 11.61	4.01	18.63 ± 17.26	1.98
19	14.60 ± 14.55	2.25	23.34 ± 18.17	1.25
21	19.01 ± 16.97	1.39	26.81 ± 16.46	0.84
23	25.58 ± 16.88	0.92	28.41 ± 16.23	0.59
25	28.45 ± 15.46	0.65	28.90 ± 15.75	0.44
30	31.10 ± 13.99	0.34	31.51 ± 13.17	0.25

UBFC1 dataset: Mean (± standard deviation) RMSE and mean video file size in MB across QP levels for H.265 at 480p and 360p.

UBFC1 dataset H.266

QP	H.266 480p		H.266 360p
QP	RMSE	size	RMSE	size
1	3.39 ± 4.96	253.54	3.62 ± 6.10	159.44
2	3.45 ± 4.98	252.62	3.86 ± 6.31	158.79
3	3.79 ± 6.40	250.28	3.66 ± 6.15	157.07
5	3.47 ± 5.16	236.58	4.12 ± 7.53	146.52
7	3.67 ± 7.20	205.26	4.20 ± 7.42	121.94
10	3.90 ± 6.81	117.18	4.69 ± 7.77	58.53
13	6.82 ± 9.08	57.39	11.25 ± 12.68	23.77
15	9.21 ± 11.83	32.64	13.50 ± 14.21	12.3
17	13.45 ± 13.53	15.4	16.34 ± 14.32	6.27
19	15.27 ± 13.94	8.29	17.73 ± 14.42	4.43
21	17.58 ± 14.04	5.89	17.43 ± 13.54	3.72
23	19.41 ± 14.23	4.45	18.92 ± 13.88	3
25	19.83 ± 13.69	3.47	20.78 ± 13.24	2.43
30	20.90 ± 13.56	2.1	21.20 ± 12.92	1.53

UBFC1 dataset: Mean (± standard deviation) RMSE and mean video file size in MB across QP levels for H.266 at 480p and 360p.

UBFC1 dataset AV1

QP	AV1 480p		AV1 360p
QP	RMSE	size	RMSE	size
1	4.15 ± 7.34	163.84	5.60 ± 8.83	72.97
2	5.57 ± 8.49	91.62	12.67 ± 12.59	36.32
3	11.75 ± 11.27	39.49	21.11 ± 14.42	17.49
4	19.51 ± 13.95	23.83	25.87 ± 14.84	10.94
5	24.60 ± 14.94	14.71	26.59 ± 14.00	7.14
6	26.01 ± 14.37	10.52	28.22 ± 14.31	5.49
7	26.98 ± 14.34	7.32	28.09 ± 14.42	4
8	28.83 ± 14.28	5.81	29.28 ± 13.79	3.31
9	28.00 ± 14.27	4.47	29.42 ± 13.79	2.62
10	29.08 ± 14.03	3.81	29.92 ± 13.17	2.28
